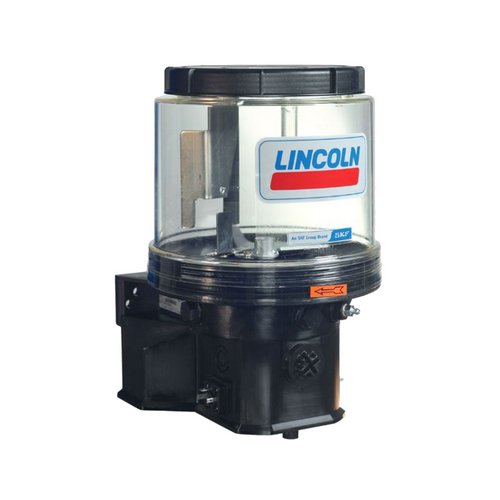

P 203 Electrically operated pumps

Lubrication System Type:
Progressive lubrication system

Product Description:

The P 203 lubrication pump is versatile, compact and economical and can supply up to 150 lubrication points, depending on the line length. It consists of a housing with integrated motor, reservoir with stirring paddle, pump element with pressure-relief valve, filling nipple and electrical connection parts. This powerful pump can drive up to three pump elements and can be equipped with a low-level control (with or without control board).

Jetzt P 203 bestellen

Features and Benefits:
Optional control printed circuit boards with different operating settings. Range of reservoir types offered. For DC or AC applications. Variety of pumping elements for different output available.

We offer the following Electrically operated pumps variants.
644-37456-1, 644-40613-8, 644-40640-7, 644-40640-9, 644-40898-4, 644-41136-2, 644-40719-6, 644-36495-3, 644-36495-6, 644-36495-7, 644-37401-1, 644-37402-1, 644-37406-1, 644-37407-1, 644-37409-1, 644-37422-1, 644-37423-1, 644-37424-1, 644-37425-1, 644-37426-1, 644-37440-1, 644-37441-1, 644-37444-1, 644-37448-1, 644-37455-1, 644-37460-1, 644-37468-1, 644-37470-1, 644-37471-1, 644-37472-1, 644-37474-1, 644-37475-1, 644-37478-1, 644-37480-1, 644-37481-1, 644-37482-1, 644-37483-1, 644-37484-1, 644-37485-1, 644-37486-1, 644-37487-1, 644-37491-1, 644-37492-1, 644-37493-1, 644-37494-1, 644-37498-1, 644-37499-1, 644-37501-1, 644-37505-1, 644-37509-1, 644-37510-1, 644-37513-1, 644-37514-1, 644-37515-1, 644-37516-1, 644-37519-1, 644-37523-1, 644-37524-1, 644-37525-1, 644-37528-1, 644-37530-1, 644-37531-1, 644-37533-1, 644-37534-1, 644-37536-1, 644-37537-1, 644-40520-2, 644-40520-3, 644-40520-4, 644-40520-5, 644-40520-7, 644-40520-8, 644-40535-5, 644-40535-6, 644-40540-1, 644-40540-2, 644-40540-3, 644-40540-5, 644-40540-6, 644-40540-8, 644-40540-9, 644-40549-2, 644-40549-4, 644-40549-5, 644-40549-8, 644-40549-9, 644-40550-1, 644-40550-4, 644-40550-5, 644-40550-6, 644-40550-7, 644-40550-8, 644-40550-9, 644-40556-1, 644-40556-2, 644-40556-4, 644-40556-5, 644-40556-7, 644-40556-9, 644-40557-1, 644-40557-2, 644-40563-1, 644-40563-2, 644-40563-3, 644-40563-4, 644-40563-5, 644-40563-7, 644-40563-8, 644-40563-9, 644-40565-1, 644-40565-4, 644-40565-5, 644-40565-7, 644-40581-2, 644-40581-3, 644-40581-4, 644-40581-5, 644-40581-6, 644-40581-8, 644-40583-1, 644-40583-3, 644-40583-4, 644-40583-5, 644-40583-6, 644-40583-7, 644-40583-8, 644-40583-9, 644-40586-3, 644-40586-4, 644-40586-5, 644-40586-6, 644-40586-8, 644-40586-9, 644-40589-3, 644-40589-6, 644-40589-7, 644-40594-1, 644-40594-2, 644-40594-3, 644-40594-4, 644-40594-5, 644-40594-6, 644-40594-7, 644-40594-8, 644-40594-9, 644-40597-1, 644-40597-4, 644-40597-5, 644-40597-6, 644-40597-7, 644-40597-8, 644-40597-9, 644-40599-1, 644-40599-2, 644-40599-3, 644-40599-4, 644-40599-5, 644-40599-7, 644-40599-8, 644-40600-2, 644-40600-3, 644-40600-4, 644-40600-5, 644-40600-6, 644-40600-8, 644-40600-9, 644-40601-1, 644-40601-4, 644-40601-5, 644-40601-9, 644-40608-1, 644-40608-2, 644-40608-3, 644-40608-6, 644-40608-7, 644-40608-8, 644-40608-9, 644-40610-1, 644-40610-2, 644-40610-3, 644-40610-5, 644-40610-6, 644-40610-7, 644-40613-1, 644-40613-2, 644-40613-3, 644-40613-5, 644-40615-1, 644-40615-2, 644-40615-3, 644-40615-4, 644-40615-5, 644-40615-7, 644-40615-8, 644-40615-9, 644-40629-9, 644-40633-3, 644-40633-6, 644-40633-7, 644-40636-1, 644-40636-2, 644-40636-4, 644-40636-5, 644-40636-6, 644-40636-7, 644-40640-2, 644-40640-5, 644-40640-8, 644-40641-1, 644-40641-2, 644-40641-3, 644-40641-4, 644-40641-6, 644-40641-8, 644-40641-9, 644-40645-1, 644-40645-2, 644-40645-3, 644-40645-4, 644-40645-6, 644-40650-3, 644-40650-5, 644-40650-6, 644-40650-8, 644-40650-9, 644-40657-2, 644-40657-3, 644-40657-6, 644-40657-9, 644-40662-1, 644-40662-2, 644-40662-3, 644-40662-4, 644-40662-5, 644-40662-7, 644-40662-9, 644-40663-1, 644-40663-3, 644-40663-4, 644-40663-5, 644-40663-7, 644-40664-1, 644-40664-4, 644-40664-5, 644-40664-6, 644-40664-7, 644-40664-8, 644-40664-9, 644-40666-1, 644-40666-2, 644-40666-3, 644-40666-4, 644-40666-5, 644-40666-6, 644-40666-7, 644-40666-9, 644-40670-3, 644-40670-4, 644-40670-6, 644-40670-9, 644-40683-1, 644-40683-2, 644-40683-3, 644-40683-4, 644-40683-5, 644-40683-6, 644-40683-7, 644-40684-2, 644-40684-3, 644-40684-5, 644-40684-6, 644-40684-7, 644-40691-1, 644-40691-2, 644-40691-3, 644-40691-4, 644-40691-9, 644-40701-5, 644-40701-6, 644-40701-7, 644-40701-9, 644-40703-1, 644-40703-2, 644-40703-3, 644-40703-6, 644-40703-7, 644-40709-1, 644-40709-3, 644-40709-4, 644-40709-7, 644-40709-9, 644-40716-1, 644-40716-2, 644-40716-3, 644-40716-5, 644-40716-6, 644-40716-8, 644-40716-9, 644-40717-1, 644-40717-2, 644-40717-3, 644-40717-4, 644-40717-5, 644-40717-6, 644-40717-8, 644-40717-9, 644-40718-1, 644-40718-2, 644-40718-3, 644-40718-5, 644-40718-6, 644-40718-7, 644-40718-8, 644-40718-9, 644-40719-1, 644-40719-4, 644-40719-5, 644-40719-7, 644-40719-8, 644-40719-9, 644-40720-1, 644-40720-2, 644-40720-3, 644-40720-4, 644-40720-8, 644-40720-9, 644-40721-1, 644-40721-2, 644-40721-3, 644-40721-4, 644-40721-5, 644-40721-6, 644-40721-7, 644-40721-8, 644-40721-9, 644-40727-1, 644-40727-3, 644-40727-4, 644-40727-9, 644-40732-2, 644-40732-4, 644-40732-6, 644-40732-9, 644-40738-1, 644-40738-6, 644-40738-8, 644-40738-9, 644-40743-2, 644-40743-4, 644-40743-6, 644-40743-7, 644-40743-9, 644-40745-3, 644-40745-5, 644-40745-8, 644-40748-3, 644-40748-5, 644-40748-8, 644-40753-2, 644-40753-4, 644-40753-5, 644-40753-6, 644-40753-7, 644-40753-9, 644-40754-1, 644-40754-4, 644-40754-5, 644-40754-6, 644-40762-1, 644-40762-2, 644-40762-4, 644-40762-6, 644-40762-7, 644-40762-8, 644-40762-9, 644-40770-4, 644-40770-5, 644-40770-7, 644-40770-8, 644-40770-9, 644-40772-3, 644-40772-4, 644-40772-5, 644-40772-7, 644-40772-8, 644-40774-1, 644-40774-2, 644-40774-3, 644-40774-4, 644-40774-5, 644-40774-6, 644-40774-7, 644-40774-8, 644-40776-6, 644-40776-7, 644-40782-2, 644-40782-3, 644-40782-4, 644-40782-5, 644-40782-6, 644-40782-8, 644-40787-1, 644-40787-3, 644-40787-4, 644-40787-7, 644-40788-4, 644-40788-5, 644-40788-7, 644-40788-9, 644-40792-1, 644-40792-3, 644-40792-4, 644-40792-5, 644-40792-6, 644-40792-8, 644-40794-1, 644-40794-2, 644-40794-3, 644-40799-1, 644-40799-2, 644-40799-3, 644-40799-4, 644-40799-5, 644-40799-7, 644-40808-1, 644-40808-2, 644-40808-3, 644-40808-5, 644-40808-8, 644-40808-9, 644-40810-1, 644-40810-2, 644-40810-4, 644-40810-5, 644-40810-7, 644-40810-8, 644-40817-6, 644-40817-9, 644-40821-2, 644-40821-3, 644-40821-4, 644-40821-6, 644-40822-1, 644-40822-2, 644-40822-3, 644-40822-5, 644-40822-8, 644-40822-9, 644-40833-1, 644-40833-7, 644-40833-9, 644-40834-1, 644-40834-2, 644-40834-9, 644-40835-1, 644-40835-3, 644-40835-7, 644-40835-8, 644-40835-9, 644-40836-1, 644-40836-2, 644-40836-5, 644-40836-6, 644-40836-8, 644-40838-1, 644-40838-4, 644-40838-5, 644-40838-6, 644-40843-7, 644-40843-8, 644-40845-1, 644-40845-6, 644-40845-8, 644-40849-1, 644-40849-2, 644-40849-3, 644-40849-4, 644-40851-2, 644-40851-3, 644-40851-4, 644-40851-8, 644-40860-2, 644-40860-6, 644-40860-7, 644-40860-8, 644-40861-2, 644-40861-3, 644-40861-4, 644-40861-7, 644-40873-1, 644-40873-4, 644-40873-5, 644-40874-1, 644-40874-2, 644-40874-3, 644-40874-5, 644-40874-7, 644-40885-1, 644-40885-3, 644-40885-4, 644-40885-5, 644-40885-8, 644-40898-7, 644-40916-2, 644-40916-6, 644-40916-8, 644-40916-9, 644-40919-1, 644-40919-2, 644-40919-3, 644-40919-5, 644-40919-6, 644-40919-7, 644-40919-9, 644-40940-2, 644-40940-3, 644-40940-4, 644-40940-5, 644-40940-6, 644-40940-7, 644-40951-1, 644-40951-2, 644-40964-1, 644-40964-2, 644-40964-4, 644-40964-6, 644-40964-7, 644-40969-5, 644-40969-8, 644-40977-4, 644-40977-7, 644-40977-8, 644-40978-3, 644-40985-1, 644-40985-2, 644-40985-4, 644-40985-5, 644-40985-6, 644-40985-7, 644-40986-5, 644-40986-7, 644-40986-9, 644-40987-5, 644-40987-6, 644-40988-2, 644-40990-1, 644-40992-1, 644-40992-2, 644-40994-1, 644-41030-1, 644-41030-4, 644-41030-8, 644-41035-6, 644-41045-2, 644-41046-1, 644-41054-4, 644-41055-1, 644-41055-3, 644-41057-3, 644-41058-1, 644-41058-2, 644-41068-3, 644-41068-4, 644-41077-5, 644-41080-1, 644-41080-2, 644-41080-4, 644-41082-2, 644-41128-3, 644-41136-4, 644-46037-1, 644-46042-5, 644-46057-7, 644-46077-5, 644-46102-7, 644-46102-9, 644-46151-3, 644-46158-8, 644-46162-5, 644-46181-7, 644-46181-8, 644-46193-2, 644-46208-2, 644-46208-4, 644-46208-5, 644-46218-2, 644-46218-3, 644-46255-4,

Technical Specifications:

Function principle: Electrically operated piston pump
Number of lubricant outlets: up to 3 pump elements
Pump outlet No. 1 - Metering quantity - Metric: 2,0 - 12 cm³/min
Pump outlet No. 2 -Metering quantity - Metric 2: 2,0 - 12 cm³/min
Pump outlet No. 3 -Metering quantity - Metric: 2,0 - 12 cm³/min
Inlet: X
Outlet: x
Lubricant: grease: up to NLGI 2 oil: with min. 40 mm²/s
Number of lubricant outlets: up to 3 pump elements
Metering quantity per pump element - Metric: K5, B7 2,0 cm³/minK6 2,8 cm³/minK7, C7 4,0 cm³/minKR adjustable 0,7-3,0 cm³/min
Capacity of the reservoir - Metric: 2; 4; 8; 15 l
Main line connection: G 1/4
Operating voltage: 12 V DC ; 24 V DC ;100-260 V AC, 50/60 Hz
Operating pressure - Metric: 350 bar
Operating temperature Celcius: V DC version –40 to +70 °CV AC version –25 to +70 °C
Control Unit: without control unit; with variably adjustable pause and lubricating time; with microprocessor control; timer for trailers and semi-trailer
Dimensions Metric: min 211 × 224 × 287 mmmax 211 × 250 × 774 mm
Mounting position: any with follower plate upright without follower plate
Fill level monitoring:
Filled with Lubricant: without lubricant; filled with lubricant
