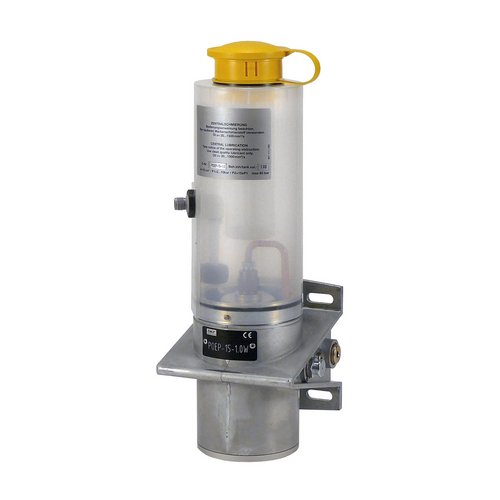

POE Manually operated piston pump

Lubrication System Type:
Single-line lubrication systems

Product Description:

These manually actuated plunger pumps were developed for intermittently operated, single-line centralized lubrication systems with piston distributors. They include a set of valves required for pressure relief and pressure limitation. Versions are available with or without fill-level switches to monitor critical levels of lubricant, and reservoirs are offered in three different sizes.

Jetzt POE bestellen

Features and Benefits:
Suitable for amount of lube points per stroke: 1-20: metering device 340 , 1-18: metering device 350 , 1-6: metering device 390 , , Simple handling , Low-cost, efficient method of distributing lubricant , Optional low-level control for reservoir

We offer the following Manually operated piston pump variants.
POE-15-0.5, POE-15-1.0, POE-15-1.0W, POE-15-1.7, POE-15-1.7W, POEP-15-0.5, POEP-15-1.0, POEP-15-1.0W, POEP-15-1.0W-S2, POEP-15-1.0W-S3, POEP-15-1.7, POEP-15-1.7-S1, POEP-15-1.7W,

Technical Specifications:

Function principle: manually operated piston pump
Number of outlets: 1
Metering quantity-metric: 15 cm³/stroke
Material (reservoir): plastic (PP), transparent
Lubricant: mineral, synthetic, and environmentally compatible oils, operating viscosity 20 to 1500 mm²/s
Connection outlet: G 1/4, on left or right
Operating pressure – Metric: max. 30 bar
Operating temperature Celcius: 0 to +60 °C
Reservoir capacity-metric: 0,5; 1,0 or 1,7 l
Control Unit:
Fill Level Switch:
Dimensions Metric: min. 133 × 248 × 124 mm; max. 190 × 448 × 124 mm
Mounting position on machines: vertical
