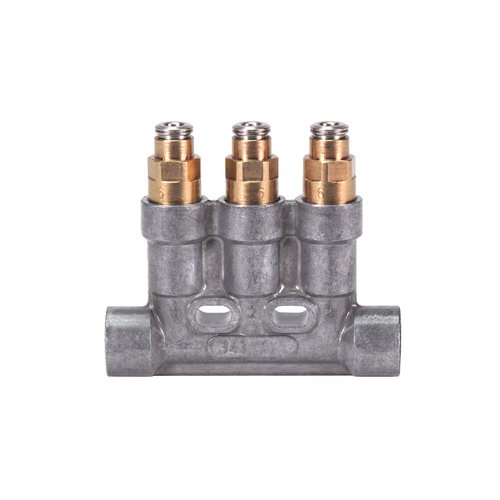

340 Metering Device

Lubrication System Type:
Single-line lubrication systems

Product Description:

Offered in two-, three- and five-port models, series 340 metering devices were developed for use with single-line, centralized lubrication systems for oil and fluid grease. These metering devices are designed for installation directly on the machine/system requiring lubrication. Series 340 metering devices can be ordered with fittings for the main line connection by selecting the appropriate order code

Jetzt 340 bestellen

Features and Benefits:
Designed for installation directly on the machine/system requiring lubrication Select optional push-in or screw-in type metering nipples for feed line connections Choose optional push-in or screw-in type main line fittings Metering nipples above 0,03 cm³ are exchangeable to yield different output quantities

We offer the following Metering Device variants.
342-400-11000-ZZ, 342-400-66000-ZZ, 342-400-22000-ZZ, 342-400-33000-ZZ, 342-400-44000-ZZ, 342-400-55000-ZZ, 342-4VS-11000-ZZ, 342-4VS-22000-ZZ, 342-4VS-33000-ZZ, 342-4VS-44000-ZZ, 342-4VS-55000-ZZ, 342-500-22000-ZZ, 342-500-33000-ZZ, 342-500-44000-ZZ, 342-5VS-22000-ZZ, 342-5VS-33000-ZZ, 342-5VS-44000-ZZ, 343-400-11100-ZZ, 343-400-66600-ZZ, 343-400-22200-ZZ, 343-400-33300-ZZ, 343-400-44400-ZZ, 343-400-55500-ZZ, 343-4VS-11100-ZZ, 343-4VS-22200-ZZ, 343-4VS-33300-ZZ, 343-4VS-44400-ZZ, 343-4VS-55500-ZZ, 343-500-22200-ZZ, 343-500-33300-ZZ, 343-500-44400-ZZ, 343-5VS-22200-ZZ, 343-5VS-33300-ZZ, 343-5VS-44400-ZZ, 345-400-11111-ZZ, 345-400-66666-ZZ, 345-400-22222-ZZ, 345-400-33333-ZZ, 345-400-44444-ZZ, 345-400-55555-ZZ, 345-4VS-11111-ZZ, 345-4VS-22222-ZZ, 345-4VS-33333-ZZ, 345-4VS-44444-ZZ, 345-4VS-55555-ZZ, 345-500-22222-ZZ, 345-500-33333-ZZ, 345-500-44444-ZZ, 345-5VS-22222-ZZ, 345-5VS-33333-ZZ, 345-5VS-44444-ZZ,

Technical Specifications:

Function principle: metering device
Metering quantity - Metric: oil: 0,01 to 0,16 cm³ grease: 0,03 to 0,10 cm³
Lubricant: mineral and synthetic oil, 20-2000 mm²/s, 0.031 to 3.100 in²/s, fluid grease NLGI 000, 00
Number of outlets: 2-, 3-, or 5-port metering device
Metering quantity - Metric - Port 1: oil 0,01-0,16 cm³; fluid grease 0,03-0,10 cm³
Metering quantity - Metric - Port 2: oil 0,01-0,16 cm³; fluid grease 0,03-0,10 cm³
Metering quantity - Metric - Port 3: oil 0,01-0,16 cm³; fluid grease 0,03-0,10 cm³
Metering quantity - Metric - Port 4: oil 0,01-0,16 cm³; fluid grease 0,03-0,10 cm³
Metering quantity - Metric - Port 5: oil 0,01-0,16 cm³; fluid grease 0,03-0,10 cm³
Metering quantity - Metric - Port 6:
Operating pressure - Metric: min. 6 bar max. 80 bar
Relief pressure - Metric: max. 3 bar
Operating temperature Celcius: 0 to +80 °C
Material: zinc die-cast, brass (oil), nickel-plated brass (fluid grease), copper, steel, FKM (FPM)/NBR
Main line connection: ∅ 6-10 mm; M 10×1
Connection outlet: ø 2,5 and 4 mm; metering nipple (VS) 0.16 in with SKF quick connector; metering nipple (00) for solderless pipe connection
Dimensions Metric: min. 48 × 53 × 15 mm max. 99 × 58 × 15 mm
Mounting position: Any
