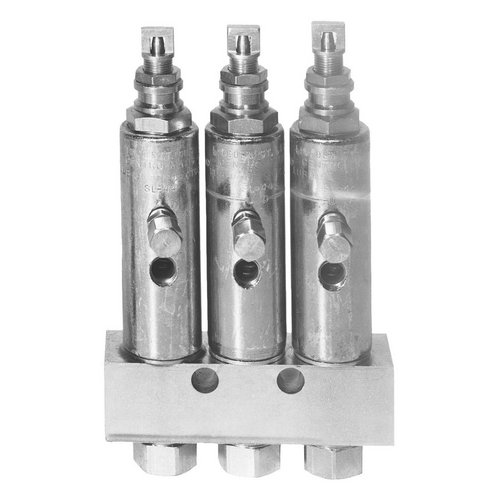

SL-44 Metering Device

Lubrication System Type:
Single-line lubrication systems

Product Description:

Series SL-44 metering devices were developed for single-line, centralized lubrication systems dispensing fluid or semi-fluid lubricants. Lubricant output is externally adjustable, and the indicator stem permits a visual check of metering device operation. These carbon steel metering devices feature fluoroelastomer packing. Metering devices with fluoroelastomer packing (indicated by black adjustment caps) are used for applications requiring heat resistance or when a lubricant requires it for compatibility.

Jetzt SL-44 bestellen

Features and Benefits:
Screw-in type, single-port metering device for pre-lubrication affixed by adapter bolts Suitable for use with manifolds having one to five ports to match number of lubrication points Output is externally adjustable Indicator stem permits visual check of operation May be combined in a circuit with SL-41, SL-42 and/or SL-43 metering devices Individual metering devices can be removed easily for inspection or replacement

We offer the following Metering Device variants.
83749-1, 83749-2, 83749-3, 83749-4, 83749-5,

Technical Specifications:

Function principle: pre-lubrication metering device
Metering quantity - Metric: adjustable from 0,13-1,31 cm³
Lubricant: mineral and synthetic oil
Number of outlets: 1-port metering device
Metering quantity - Metric - Port 1: 0,13-1,31 cm³
Metering quantity - Metric - Port 2:
Metering quantity - Metric - Port 3:
Metering quantity - Metric - Port 4:
Metering quantity - Metric - Port 5:
Metering quantity - Metric - Port 6:
Operating pressure - Metric: min. 52 bar max. 70 bar
Relief pressure - Metric: 10 bar
Operating temperature Celcius: -26 to +93 °C
Material: carbon steel, FKM (FPM)
Main line connection: 3/8 NPTF (F)
Connection outlet: 1/8 NPTF (F)
Dimensions Metric: min. 63 × 179,4 × 52,4 mm max. 171 × 179,4 × 52,4 mm
Mounting position: Any
