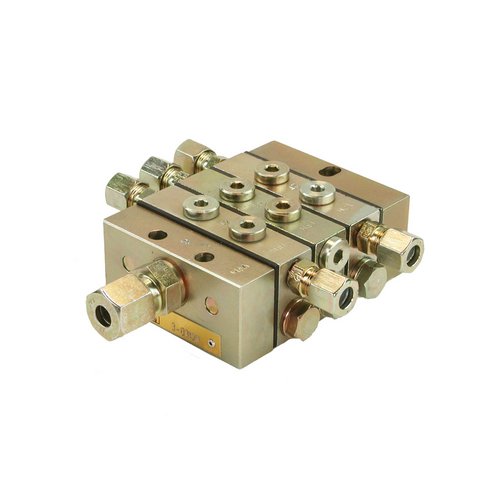

VP Schmierstoffverteiler

Schmiersystem:
Progressiv-Schmierstoffverteiler

Eigenschaften und Vorteile:
Volumenstrom von bis zu 1000 cm³/min (61 in³/min). Universell einsetzbar für kontinuierlichen und intermittierenden Betrieb. Flexible Systemgestaltung durch Dosierscheiben mit unterschiedlichen Dosiervolumina. Internes und externes Zusammenfassen von Auslässen möglich. Optional: visuelle oder elektrische Überwachung. Eignet sich ideal als Hauptverteiler. Alle Auslässe mit integrierten Rückschlagventilen.

en Artikel Schmierstoffverteiler führen wir in folgenden Varianten:
VPG-10-03402, VPG-10-03570, VPG-10-06247, VPG-10-07335, VPG-10-07384, VPG-10-07953, VPG-10-08196, VPG-10-09554, VPG-10-10180, VPG-3-02677, VPG-3-02710, VPG-3-02831, VPG-3-02943, VPG-3-02956, VPG-3-02962, VPG-3-02963, VPG-3-02980, VPG-3-02981, VPG-3-02982, VPG-3-02983, VPG-3-02984, VPG-3-02989, VPG-3-02990, VPG-3-02998, VPG-3-02999, VPG-3-03001, VPG-3-03002, VPG-3-03003, VPG-3-03122, VPG-3-03178, VPG-3-03283, VPG-3-03524, VPG-3-03573, VPG-3-04053, VPG-3-04057, VPG-3-04111, VPG-3-04270, VPG-3-04274, VPG-3-04307, VPG-3-04443, VPG-3-04476, VPG-3-04781, VPG-3-05004, VPG-3-05122, VPG-3-05178, VPG-3-05815, VPG-3-05847, VPG-3-06005, VPG-3-06107, VPG-3-06367, VPG-3-06779, VPG-3-07027, VPG-3-07028, VPG-3-07610, VPG-3-07989, VPG-3-08549, VPG-3-08786, VPG-3-08804, VPG-3-09051, VPG-3-09078, VPG-3-09511, VPG-3-09631, VPG-3-09830, VPG-3-10488, VPG-3-10598, VPG-3-11571, VPG-4-02838, VPG-4-02840, VPG-4-02849, VPG-4-02850, VPG-4-03000, VPG-4-03022, VPG-4-03092, VPG-4-03106, VPG-4-03415, VPG-4-03644, VPG-4-03958, VPG-4-04019, VPG-4-04028, VPG-4-04081, VPG-4-04697, VPG-4-04844, VPG-4-04856, VPG-4-05312, VPG-4-05351, VPG-4-05396, VPG-4-05719, VPG-4-05786, VPG-4-06604, VPG-4-06741, VPG-4-06743, VPG-4-06819, VPG-4-06884, VPG-4-06977, VPG-4-07154, VPG-4-07253, VPG-4-07403, VPG-4-07561, VPG-4-07946, VPG-4-07968, VPG-4-08140, VPG-4-08256, VPG-4-08397, VPG-4-08589, VPG-4-08731, VPG-4-08879, VPG-4-08904, VPG-4-09042, VPG-4-09098, VPG-4-09540, VPG-4-09541, VPG-4-09858, VPG-4-11267, VPG-4-11275, VPG-4-11982, VPG-4-11987, VPG-5-02852, VPG-5-02858, VPG-5-02859, VPG-5-02864, VPG-5-03098, VPG-5-03293, VPG-5-03330, VPG-5-03353, VPG-5-03498, VPG-5-03547, VPG-5-03563, VPG-5-03648, VPG-5-03882, VPG-5-04214, VPG-5-04420, VPG-5-04455, VPG-5-04545, VPG-5-04630, VPG-5-04804, VPG-5-05142, VPG-5-05354, VPG-5-05435, VPG-5-05988, VPG-5-06165, VPG-5-06264, VPG-5-06469, VPG-5-08261, VPG-5-08375, VPG-5-08432, VPG-5-08440, VPG-5-08563, VPG-5-08591, VPG-5-08795, VPG-5-09190, VPG-5-09440, VPG-5-10085, VPG-5-10686, VPG-5-10687, VPG-5-10703, VPG-5-11497, VPG-5-11755, VPG-5-11932, VPG-6-02867, VPG-6-02870, VPG-6-03031, VPG-6-03306, VPG-6-03468, VPG-6-03474, VPG-6-03513, VPG-6-03910, VPG-6-04105, VPG-6-04330, VPG-6-04994, VPG-6-05250, VPG-6-05633, VPG-6-06433, VPG-6-06644, VPG-6-06788, VPG-6-07182, VPG-6-07213, VPG-6-07785, VPG-6-08281, VPG-6-08354, VPG-6-08491, VPG-6-08858, VPG-6-09914, VPG-6-10720, VPG-6-10723, VPG-6-10724, VPG-6-11883, VPG-6-12030, VPG-7-02684, VPG-7-02885, VPG-7-03096, VPG-7-03103, VPG-7-03142, VPG-7-04082, VPG-7-04179, VPG-7-04458, VPG-7-05273, VPG-7-05426, VPG-7-06082, VPG-7-06099, VPG-7-06826, VPG-7-07084, VPG-7-07092, VPG-7-07585, VPG-7-08015, VPG-7-09294, VPG-7-09621, VPG-7-10473, VPG-8-02905, VPG-8-02968, VPG-8-02994, VPG-8-03071, VPG-8-03077, VPG-8-03088, VPG-8-03113, VPG-8-03339, VPG-8-03805, VPG-8-04005, VPG-8-04074, VPG-8-04099, VPG-8-05000, VPG-8-05469, VPG-8-05574, VPG-8-08010, VPG-8-09364, VPG-8-10786, VPG-9-02915, VPG-9-03398, VPG-9-03609, VPG-9-04175, VPG-9-04771, VPG-9-06087, VPG-9-06104, VPG-9-06839, VPG-9-06840, VPG-9-08162, VPG-9-08217, VPG-9-08524, VPG-9-09452, VPG-9-10206, VPG-9-10423, VPM-10-02996, VPM-10-03004, VPM-10-03005, VPM-10-03154, VPM-10-03155, VPM-10-03272, VPM-10-03708, VPM-10-04499, VPM-10-06153, VPM-10-06928, VPM-10-08788, VPM-3-02944, VPM-3-02945, VPM-3-02970, VPM-3-02983, VPM-3-02984, VPM-3-02998, VPM-3-03011, VPM-3-03025, VPM-3-03164, VPM-3-03200, VPM-3-03275, VPM-3-03297, VPM-3-03418, VPM-3-03640, VPM-3-03661, VPM-3-03670, VPM-3-03809, VPM-3-03938, VPM-3-03971, VPM-3-04025, VPM-3-04342, VPM-3-04375, VPM-3-04428, VPM-3-04456, VPM-3-04548, VPM-3-04640, VPM-3-05336, VPM-3-05458, VPM-3-05719, VPM-3-05894, VPM-3-06030, VPM-3-06091, VPM-3-06188, VPM-3-06669, VPM-3-06896, VPM-3-02984, VPM-3-07310, VPM-3-07512, VPM-3-07605, VPM-3-07900, VPM-3-07933, VPM-3-07980, VPM-3-08382, VPM-3-03164, VPM-3-08619, VPM-3-09722, VPM-3-09901, VPM-3-10155, VPM-3-10341, VPM-4-02688, VPM-4-02725, VPM-4-02840, VPM-4-02844, VPM-4-02987, VPM-4-03023, VPM-4-03030, VPM-4-03048, VPM-4-03544, VPM-4-03552, VPM-4-03588, VPM-4-03744, VPM-4-02688, VPM-4-04154, VPM-4-04184, VPM-4-04329, VPM-4-04330, VPM-4-04424, VPM-4-04425, VPM-4-04426, VPM-4-04798, VPM-4-04816, VPM-4-04912, VPM-4-05077, VPM-4-05313, VPM-4-05450, VPM-4-05685, VPM-4-05915, VPM-4-06170, VPM-4-06171, VPM-4-06306, VPM-4-06514, VPM-4-06598, VPM-4-06711, VPM-4-06749, VPM-4-07033, VPM-4-07180, VPM-4-07418, VPM-4-07530, VPM-4-07746, VPM-4-07768, VPM-4-07855, VPM-4-08099, VPM-4-09089, VPM-4-09359, VPM-4-09387, VPM-4-09728, VPM-4-09910, VPM-4-09980, VPM-4-09997, VPM-4-10179, VPM-5-02852, VPM-5-02854, VPM-5-02858, VPM-5-02861, VPM-5-03066, VPM-5-03083, VPM-5-03265, VPM-5-03284, VPM-5-03347, VPM-5-03450, VPM-5-03490, VPM-5-03611, VPM-5-03618, VPM-5-03713, VPM-5-03722, VPM-5-03966, VPM-5-04094, VPM-5-04111, VPM-5-04122, VPM-5-04384, VPM-5-04412, VPM-5-04493, VPM-5-04522, VPM-5-04563, VPM-5-04623, VPM-5-05029, VPM-5-05041, VPM-5-05043, VPM-5-05281, VPM-5-05346, VPM-5-05352, VPM-5-05358, VPM-5-05430, VPM-5-05511, VPM-5-05962, VPM-5-06221, VPM-5-06570, VPM-5-06695, VPM-5-07147, VPM-5-07200, VPM-5-07325, VPM-5-07632, VPM-5-07685, VPM-5-08059, VPM-5-08368, VPM-5-08850, VPM-5-08960, VPM-5-09800, VPM-5-10114, VPM-5-10130, VPM-5-10131, VPM-5-10296, VPM-5-10323, VPM-6-02875, VPM-6-02876, VPM-6-03268, VPM-6-03310, VPM-6-03478, VPM-6-03969, VPM-6-04492, VPM-6-04715, VPM-6-05261, VPM-6-05307, VPM-6-05543, VPM-6-05723, VPM-6-06027, VPM-6-06662, VPM-6-07430, VPM-6-07603, VPM-6-07607, VPM-6-07880, VPM-6-08007, VPM-6-08031, VPM-6-08489, VPM-6-08664, VPM-6-08911, VPM-6-09157, VPM-6-10201, VPM-6-10287, VPM-7-02882, VPM-7-02885, VPM-7-02886, VPM-7-03248, VPM-7-03777, VPM-7-04433, VPM-7-04496, VPM-7-04674, VPM-7-04761, VPM-7-04971, VPM-7-05217, VPM-7-05244, VPM-7-05264, VPM-7-05473, VPM-7-05567, VPM-7-05824, VPM-7-05841, VPM-7-06004, VPM-7-07466, VPM-7-07674, VPM-7-08376, VPM-7-09182, VPM-8-02899, VPM-8-02900, VPM-8-03077, VPM-8-03251, VPM-8-04374, VPM-8-04388, VPM-8-04440, VPM-8-04926, VPM-8-05079, VPM-8-05080, VPM-8-05108, VPM-8-05320, VPM-8-07132, VPM-8-07250, VPM-8-07523, VPM-8-08845, VPM-8-09240, VPM-9-02914, VPM-9-02926, VPM-9-03236, VPM-9-04460, VPM-9-04463, VPM-9-04637, VPM-9-04826, VPM-9-06276, VPM-9-07157, VPM-9-07210, VPM-9-07608, VPM-9-07619, VPM-9-07798, VPG-10-09952, VPG-3-02711, VPG-3-03009, VPG-3-03020, VPG-3-03116, VPG-3-03229, VPG-3-03298, VPG-3-03360, VPG-3-03366, VPG-3-03429, VPG-3-03578, VPG-3-03999, VPG-3-04092, VPG-3-04211, VPG-3-04817, VPG-3-04852, VPG-3-05133, VPG-3-05262, VPG-3-05263, VPG-3-05401, VPG-3-05477, VPG-3-05587, VPG-3-05674, VPG-3-05679, VPG-3-05921, VPG-3-06212, VPG-3-06371, VPG-3-06401, VPG-3-06637, VPG-3-06878, VPG-3-06955, VPG-3-06956, VPG-3-07288, VPG-3-07450, VPG-3-07489, VPG-3-08540, VPG-3-08663, VPG-3-08712, VPG-3-09267, VPG-3-09470, VPG-3-10010, VPG-3-10011, VPG-3-10615, VPG-3-11335, VPG-4-02842, VPG-4-02848, VPG-4-02851, VPG-4-03441, VPG-4-03510, VPG-4-03730, VPG-4-03948, VPG-4-04208, VPG-4-04368, VPG-4-05310, VPG-4-05391, VPG-4-05697, VPG-4-06041, VPG-4-06783, VPG-4-07422, VPG-4-07555, VPG-4-08380, VPG-4-08798, VPG-4-10600, VPG-4-11279, VPG-4-11609, VPG-5-02854, VPG-5-03162, VPG-5-03542, VPG-5-03720, VPG-5-04127, VPG-5-05419, VPG-5-06039, VPG-5-06062, VPG-5-07505, VPG-5-07510, VPG-5-08207, VPG-5-08475, VPG-5-09620, VPG-5-09967, VPG-5-10030, VPG-6-03231, VPG-6-04159, VPG-6-04796, VPG-6-05561, VPG-6-05632, VPG-6-07227, VPG-6-07331, VPG-6-08701, VPG-6-08999, VPG-6-09126, VPG-6-09380, VPG-6-09765, VPG-7-09356, VPG-8-03631, VPG-8-06359, VPG-9-02921, VPM-10-02936, VPM-10-02937, VPM-10-02938, VPM-10-02940, VPM-10-02941, VPM-10-02995, VPM-3-02829, VPM-3-03024, VPM-3-03090, VPM-3-03091, VPM-3-03125, VPM-3-03135, VPM-3-03138, VPM-3-03140, VPM-3-03141, VPM-3-03165, VPM-3-03177, VPM-3-03188, VPM-3-03194, VPM-3-03237, VPM-3-03291, VPM-3-03329, VPM-3-03453, VPM-3-03454, VPM-3-03502, VPM-3-03503, VPM-3-03622, VPM-3-03630, VPM-3-03780, VPM-3-03932, VPM-3-04148, VPM-3-04467, VPM-3-04507, VPM-3-04599, VPM-3-04657, VPM-3-04865, VPM-3-04867, VPM-3-05051, VPM-3-05061, VPM-3-05102, VPM-3-05181, VPM-3-05339, VPM-3-05350, VPM-3-05920, VPM-3-05931, VPM-3-06068, VPM-3-06073, VPM-3-06074, VPM-3-06190, VPM-3-06277, VPM-3-06383, VPM-3-06481, VPM-3-06969, VPM-3-06979, VPM-3-07144, VPM-3-07318, VPM-3-07332, VPM-3-07741, VPM-3-07920, VPM-3-07992, VPM-3-08228, VPM-3-08628, VPM-3-09040, VPM-3-09650, VPM-3-09801, VPM-3-09825, VPM-3-09828, VPM-3-10139, VPM-4-02843, VPM-4-03218, VPM-4-03256, VPM-4-03448, VPM-4-03583, VPM-4-03718, VPM-4-03944, VPM-4-04001, VPM-4-04088, VPM-4-04314, VPM-4-04327, VPM-4-04431, VPM-4-04435, VPM-4-04655, VPM-4-05076, VPM-4-05092, VPM-4-05214, VPM-4-05286, VPM-4-05514, VPM-4-05600, VPM-4-05643, VPM-4-05908, VPM-4-06589, VPM-4-06595, VPM-4-06613, VPM-4-06955, VPM-4-07222, VPM-4-08046, VPM-4-08193, VPM-4-08224, VPM-4-08355, VPM-4-08662, VPM-4-09863, VPM-4-09885, VPM-4-09958, VPM-4-09989, VPM-4-10346, VPM-5-03006, VPM-5-03086, VPM-5-03305, VPM-5-03349, VPM-5-03350, VPM-5-03569, VPM-5-04046, VPM-5-04059, VPM-5-04165, VPM-5-04411, VPM-5-04418, VPM-5-04457, VPM-5-04524, VPM-5-04556, VPM-5-05987, VPM-5-06236, VPM-5-06513, VPM-5-07630, VPM-5-08395, VPM-5-08605, VPM-5-10115, VPM-6-02873, VPM-6-02874, VPM-6-03067, VPM-6-03455, VPM-6-03555, VPM-6-03918, VPM-6-04719, VPM-6-04752, VPM-6-04802, VPM-6-06222, VPM-6-07090, VPM-6-07711, VPM-6-08902, VPM-6-09172, VPM-6-09456, VPM-6-10197, VPM-7-03290, VPM-7-03645, VPM-7-03669, VPM-7-03679, VPM-7-04024, VPM-7-04320, VPM-7-04664, VPM-7-04687, VPM-7-05837, VPM-7-07226, VPM-7-09181, VPM-8-03409, VPM-9-02921, VPM-9-03285, VPM-9-06625

Technische Daten:

• Function principle: metering devices
• Number of outlets:  6-20
• Metering quantity-metric per outlet: 0,1-1,2 cm³/stroke
• Materials: Inlet, separator, end plate: steel, galvanized/NBR;sections/piston plates: steel, galvanized
• Lubricant: grease up to NLGI 2 oil with min. viscosity of 12 mm²/s
• Connection inlet: VPM M 14 × 1,5 VPG G 1/4
• Outlet connection: VPM M 10 × 1 VPG G 1/8
• Operating pressure - Metric: oil 200 bar; grease 300 bar
• Operating temperature Celcius:  -25 to +90 °C
• Dimensions Metric: min. 98 × 82,5 × 41 mm; max. 238 × 82,5 × 41 mm
• Mounting position on machines: without vibration any;with vibration piston position should be 90° to machine movements direction
• Cycle Indicator:
